Script Code : Buat Form Tes Koneksi

Pada artikel kali ini saya akan berbagi tentang Script Code untuk bahasa pemprograman VB (Visual Basic), bisa juga digunakan untuk bahasa pemprograman Java maupun Foxpro, hanya dengan mengganti perintah-perintahnya saja. Script Code yang akan saya bahas adalah tentang Tes Koneksi yaitu koneksi antara Server dan Client, ini bisa digunakan juga untuk Jaringan, bagi anda yang suka mengotak-atik jaringan bisa pakai program ini. Jika anda berminat bisa mengikuti langkah-langkah berikut, anda tinggal mengklik menu dibawah ini :
1.  Forms
     -  frmConnectionTest(frmConnectionTest.frm)
     -  frmMyIP(frmMyIP.frm)
     -  frmPortScanner(frmPortScanner.frm)
--------------------------------------------------------------------------------------------------
1.  Forms

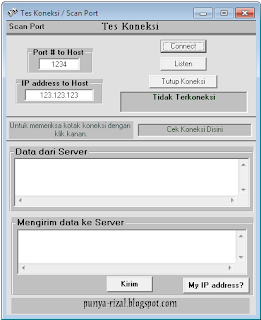

     -  frmConnectionTest

     Script Code :

Dim AtPort As String
Dim LimitSend As String
Dim Start As String
-----------------------------------------------------------------------------------------
Private Sub cmdClearLog_Click()
txtPortsOpenLog.Text = ""
End Sub
-----------------------------------------------------------------------------------------
Private Sub CmdScan_Click()
TimerScanner.Enabled = False
If Start = "No" Then
Exit Sub
End If
CmdScan.Enabled = False
If optLocal.Value = True Then
Dim PortLow As String
PortLow = txtPortLow.Text
Dim PortHigh As String
PortHigh = txtPortHigh.Text
Dim Ok As String
Ok = AtPort
WinsockPortScanner.Close
DoEvents
WinsockPortScanner.Connect txtIPHostscanner.Text, AtPort
DoEvents
If Not WinsockPortScanner.State = 7 Then
WinsockPortScanner.Close
AtPort = Ok + 1
lblShowsatwhatPort.Caption = "Pada port: " & AtPort
If AtPort = LimitSend Then
LimitSend = AtPort + 4000
Exit Sub
End If
If AtPort = PortHigh Then
Exit Sub
End If
Call CmdScan_Click
Exit Sub
Else
WinsockPortScanner.Close
AtPort = Ok + 1
lblShowsatwhatPort.Caption = "Pada port: " & AtPort
If AtPort = PortHigh Then
Exit Sub
End If
Call CmdScan_Click
End If
Else
WinsockPortScanner.Close
DoEvents
WinsockPortScanner.Connect txtIPHostscanner.Text, AtPort
DoEvents
TimerScanner.Enabled = True
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub cmdStopRefresh_Click()
Start = "No"
TimerRefresh.Enabled = True
WinsockPortScanner.Close
CmdScan.Enabled = False
txtPortHigh.Text = 3000
txtPortLow.Text = 1
AtPort = 1
LimitSend = 4000
End Sub
-----------------------------------------------------------------------------------------
Private Sub cmdScanSpeed_Click()
Dim ScanSpeed As String
ScanSpeed = txtScanSpeed.Text
If lblShowsatwhatPort.Caption = "Pada Port: Tidak Terscan" Then
Else
MsgBox "Anda harus terlebih dahulu menghentikan scan."
Exit Sub
End If
If ScanSpeed < 1 Then
MsgBox "Kecepatan harus antara 1-1000"
Exit Sub
Else
GoTo ScanSpeedToHighCheck
End If
ScanSpeedToHighCheck:
If ScanSpeed > 1000 Then
MsgBox "Kecepatan harus antara 1-1000"
Exit Sub
Else
lblScanSpeed.Caption = "Kecepatan Scan: " & txtScanSpeed.Text
TimerScanner.Interval = txtScanSpeed.Text
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub cmdSendDataServer_Click()
If WinsockConnectTest.State = 7 Then
Dim SendDataServer As String
SendDataServer = txtSendData.Text
WinsockConnectTest.SendData SendDataServer
Else
Beep
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub Command1_Click()
frmMyIP.Show
End Sub
-----------------------------------------------------------------------------------------
Private Sub Form_Load()
Start = "Yes"
AtPort = 1
LimitSend = 4000
End Sub
-----------------------------------------------------------------------------------------
Private Sub Form_Unload(Cancel As Integer)
If frmPortScanner.Visible = False Then
Timer1.Enabled = False
cmdConnnect.Enabled = True
cmdListen.Enabled = True
DoEvents
WinsockConnectTest.Close
DoEvents
End
Else
Cancel = True
frmConnectionTest.Visible = False
Exit Sub
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub TimerRefresh_Timer()
Start = "Yes"
lblShowsatwhatPort.Caption = "Pada Port: Tidak Terscan"
CmdScan.Enabled = True
TimerRefresh.Enabled = False
End Sub
-----------------------------------------------------------------------------------------
Private Sub TimerScanner_Timer()
Dim Ok As String
Ok = AtPort
If Not WinsockPortScanner.State = 7 Then
WinsockPortScanner.Close
AtPort = Ok + 1
lblShowsatwhatPort.Caption = "Pada port: " & AtPort
If AtPort = LimitSend Then
LimitSend = AtPort + 4000
Exit Sub
End If
If AtPort = PortHigh Then
Exit Sub
End If
Call CmdScan_Click
Exit Sub
Else
WinsockPortScanner.Close
AtPort = Ok + 1
lblShowsatwhatPort.Caption = "Pada port: " & AtPort
If AtPort = PortHigh Then
Exit Sub
End If
Call CmdScan_Click
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub txtPortLow_Change()
AtPort = txtPortLow.Text
LimitSend = AtPort + 4000
End Sub
-----------------------------------------------------------------------------------------
Private Sub WinsockPortScanner_Connect()
txtPortsOpenLog.SelText = AtPort & vbCrLf
End Sub
-----------------------------------------------------------------------------------------
Private Sub WinsockPortScanner_Error(ByVal Number As Integer, Description As String, ByVal Scode As Long, ByVal Source As String, ByVal HelpFile As String, ByVal HelpContext As Long, CancelDisplay As Boolean)
Exit Sub
End Sub
-----------------------------------------------------------------------------------------
Private Sub cmdConnnect_Click()
cmdListen.Enabled = False
WinsockConnectTest.Close
WinsockConnectTest.Connect txtIPaddress.Text, txtTestPort
lblConnectionStatus.Caption = "Koneksi dari " & txtIPaddress.Text & " pada port " & txtTestPort.Text
Timer1.Enabled = True
End Sub
-----------------------------------------------------------------------------------------
Private Sub cmdListen_Click()
cmdConnnect.Enabled = False
WinsockConnectTest.Close
WinsockConnectTest.LocalPort = txtTestPort.Text
WinsockConnectTest.Listen
lblConnectionStatus.Caption = "Dengarkan pada port " & txtTestPort.Text
End Sub
-----------------------------------------------------------------------------------------
Private Sub cmdCloseConnection_Click()
cmdConnnect.Enabled = True
cmdListen.Enabled = True
WinsockConnectTest.Close
lblConnectionStatus.Caption = "Koneksi Ditutup"
Timer1.Enabled = False
End Sub
-----------------------------------------------------------------------------------------
Private Sub lblCheckConnection_Click()
If Not WinsockConnectTest.State = 7 Then
lblCheckConnection.Caption = "Koneksi: Tidak"
Else
lblCheckConnection.Caption = "Koneksi: Ya"
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub lblShowPortScanner_Click()
frmPortScanner.Show
End Sub
-----------------------------------------------------------------------------------------
Private Sub Timer1_Timer()
If Not WinsockConnectTest.State = 7 Then
lblConnectionStatus.Caption = "Koneksi Gagal"
WinsockConnectTest.Close
cmdConnnect.Enabled = True
cmdListen.Enabled = True
Timer1.Enabled = False
Else
If cmdListen.Enabled = True Then
lblConnectionStatus.Caption = "Terkoneksi"
End If
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub WinsockConnectTest_Connect()
lblConnectionStatus.Caption = "Koneksi dari " & txtIPaddress.Text & " pada port " & txtTestPort.Text
End Sub
-----------------------------------------------------------------------------------------
Private Sub WinsockConnectTest_ConnectionRequest(ByVal requestID As Long)
If WinsockConnectTest.State <> sckClosed Then WinsockConnectTest.Close
WinsockConnectTest.Accept requestID
lblConnectionStatus.Caption = "Host telah terkoneksi..."
Timer1.Enabled = True
End Sub
-----------------------------------------------------------------------------------------
Private Sub WinsockConnectTest_DataArrival(ByVal bytesTotal As Long)
Dim ServerData As String
WinsockConnectTest.GetData ServerData, vbString
txtDataServer.SelStart = Len(txtDataServer.Text)
txtDataServer.SelText = ServerData
End Sub
-----------------------------------------------------------------------------------------
Private Sub WinsockConnectTest_Error(ByVal Number As Integer, Description As String, ByVal Scode As Long, ByVal Source As String, ByVal HelpFile As String, ByVal HelpContext As Long, CancelDisplay As Boolean)
Exit Sub
End Sub

    -  frmMyIP

     Script Code :

Option Explicit
-----------------------------------------------------------------------------------------
Private Sub cmdGetIP_Click()
On Error GoTo ErrroHere
Label2.Caption = "Status: Harap tunggu proses pencarian..."
Dim LengthToIP As Integer
Dim LengthToEndIP As Integer
Dim TotalLengthIP As Integer
Dim FinalIP As String
Dim Html As String
Dim HackData As String
Html = Inet1.OpenURL("http://www.whatismyip.com")
TotalLengthIP = Len(Html)
LengthToIP = InStr(1, Html, "is", 1) + 3
LengthToEndIP = InStr(LengthToIP, Html, " ", 1)
If LengthToEndIP > 0 Then
LengthToEndIP = (LengthToEndIP - LengthToIP)
FinalIP = Mid(Html, LengthToIP, LengthToEndIP)
HackData = "IP Internal = " & WinsockBot.LocalIP & " <|||> " & "IP Eksternal = " & FinalIP
Label2.Caption = "Status: IP address ditemukan / Tidak Error"
Else
HackData = "Error ketika mencoba untuk mendapatkan IP"
End If
text1.Text = HackData
Exit Sub
ErrroHere:
Label2.Caption = "Status: Error untuk menemukan IP Eksternal"
HackData = "IP Internal = " & WinsockBot.LocalIP & " <|||> " & "IP Eksternal = Pencarian-Error"
End Sub

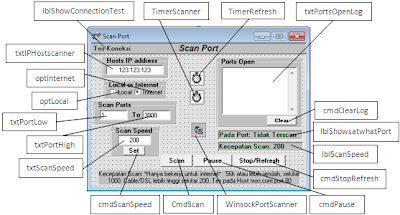

    -  frmPortScanner

Script Code :

Dim AtPort As String
Dim Start As String
Dim Pause As Boolean
-----------------------------------------------------------------------------------------
Private Sub cmdClearLog_Click()
txtPortsOpenLog.Text = ""
End Sub
-----------------------------------------------------------------------------------------
Private Sub cmdPause_Click()
If cmdPause.Caption = "Pause" Then
cmdPause.Caption = "Lanjutkan"
Pause = True
Else
cmdPause.Caption = "Pause"
Pause = False
Call CmdScan_Click
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub CmdScan_Click()
Dim PortLow As String
PortLow = txtPortLow.Text
Dim PortHigh As String
PortHigh = txtPortHigh.Text
TimerScanner.Enabled = False
If Pause = True Then
lblShowsatwhatPort.Caption = "Pada port: " & AtPort & " Pause"
Exit Sub
End If
If Start = "No" Then
Exit Sub
End If
If AtPort = PortHigh Then
Exit Sub
End If
CmdScan.Enabled = False
If optLocal.Value = True Then
Do
If Start = "No" Then
Exit Sub
End If
WinsockPortScanner.Close
DoEvents
WinsockPortScanner.Connect txtIPHostscanner.Text, AtPort
DoEvents
If Not WinsockPortScanner.State = 7 Then
WinsockPortScanner.Close
AtPort = AtPort + 1
lblShowsatwhatPort.Caption = "Pada port: " & AtPort
Else
WinsockPortScanner.Close
AtPort = AtPort + 1
lblShowsatwhatPort.Caption = "Pada port: " & AtPort
End If
Loop Until AtPort = PortHigh
Else
WinsockPortScanner.Close
DoEvents
WinsockPortScanner.Connect txtIPHostscanner.Text, AtPort
DoEvents
TimerScanner.Enabled = True
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub cmdStopRefresh_Click()
Start = "No"
TimerRefresh.Enabled = True
WinsockPortScanner.Close
CmdScan.Enabled = False
txtPortHigh.Text = 3000
txtPortLow.Text = 1
AtPort = 1
LimitSend = 4000
cmdPause.Caption = "Pause"
Pause = False
End Sub
-----------------------------------------------------------------------------------------
Private Sub cmdScanSpeed_Click()
Dim ScanSpeed As String
ScanSpeed = txtScanSpeed.Text
If lblShowsatwhatPort.Caption = "Pada Port: Tidak Terscan" Then
Else
MsgBox "Anda harus terlebih dahulu menghentikan scan saat ini."
Exit Sub
End If
If ScanSpeed < 1 Then
MsgBox "Kecepatan harus antara 1-1000"
Exit Sub
Else
GoTo ScanSpeedToHighCheck
End If
ScanSpeedToHighCheck:
If ScanSpeed > 1000 Then
MsgBox "Kecepatan harus antara 1-1000"
Exit Sub
Else
lblScanSpeed.Caption = "Kecepatan Scan: " & txtScanSpeed.Text
TimerScanner.Interval = txtScanSpeed.Text
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub Form_Load()
Start = "Yes"
AtPort = 1
LimitSend = 4000
Pause = False
End Sub
-----------------------------------------------------------------------------------------
Private Sub Form_Unload(Cancel As Integer)
If frmConnectionTest.Visible = False Then
TimerRefresh.Enabled = False
TimerScanner.Enabled = False
WinsockPortScanner.Close
End
Else
Cancel = True
frmPortScanner.Visible = False
Exit Sub
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub lblShowConnectionTest_Click()
frmConnectionTest.Show
End Sub
-----------------------------------------------------------------------------------------
Private Sub TimerRefresh_Timer()
Start = "Yes"
lblShowsatwhatPort.Caption = "Pada Port: Tidak Terscan"
CmdScan.Enabled = True
TimerRefresh.Enabled = False
End Sub
-----------------------------------------------------------------------------------------
Private Sub TimerScanner_Timer()
If Pause = True Then
lblShowsatwhatPort.Caption = "Pada port: " & AtPort & " Pause"
TimerScanner.Enabled = False
Exit Sub
End If
If Start = "No" Then
TimerScanner.Enabled = False
Exit Sub
End If
If AtPort = PortHigh Then
Exit Sub
End If
If Not WinsockPortScanner.State = 7 Then
WinsockPortScanner.Close
AtPort = AtPort + 1
lblShowsatwhatPort.Caption = "Pada port: " & AtPort
WinsockPortScanner.Close
DoEvents
WinsockPortScanner.Connect txtIPHostscanner.Text, AtPort
DoEvents
Exit Sub
Else
WinsockPortScanner.Close
AtPort = AtPort + 1
lblShowsatwhatPort.Caption = "Pada port: " & AtPort
If AtPort = PortHigh Then
Exit Sub
End If
WinsockPortScanner.Close
DoEvents
WinsockPortScanner.Connect txtIPHostscanner.Text, AtPort
DoEvents
End If
End Sub
-----------------------------------------------------------------------------------------
Private Sub txtPortLow_Change()
AtPort = txtPortLow.Text
LimitSend = AtPort + 4000
End Sub
-----------------------------------------------------------------------------------------
Private Sub WinsockPortScanner_Connect()
txtPortsOpenLog.SelStart = Len(txtPortsOpenLog.Text)
txtPortsOpenLog.SelText = AtPort & vbCrLf
End Sub
-----------------------------------------------------------------------------------------
Private Sub WinsockPortScanner_Error(ByVal Number As Integer, Description As String, ByVal Scode As Long, ByVal Source As String, ByVal HelpFile As String, ByVal HelpContext As Long, CancelDisplay As Boolean)
Exit Sub
End Sub

Sekian dulu informasi dari saya, bila ada pertanyaan bisa lewat kotak komentar.
Terima kasih, semoga bermanfaat!

Baca Juga Artikel Terkait :
